An electric floor thermostat gives you precise control over your underfloor heating and can help reduce energy use when set up correctly. Many homeowners assume that installing one requires a licensed electrician from start to finish, but in many cases, you can safely handle part of the job yourself—especially if you’re simply replacing an existing thermostat. Here’s a step-by-step guide tailored for Australian homes.

Before You Begin – Safety First

Electrical safety is critical. In Australia, electrical work is regulated by state and territory laws. As a homeowner, you may replace a like-for-like thermostat only if no wiring changes are required and the existing installation is compliant. Any new wiring, connection to mains power, or modification of fixed wiring must be carried out by a licensed electrician.

Always remember:

• Turn off the power at the switchboard before starting.

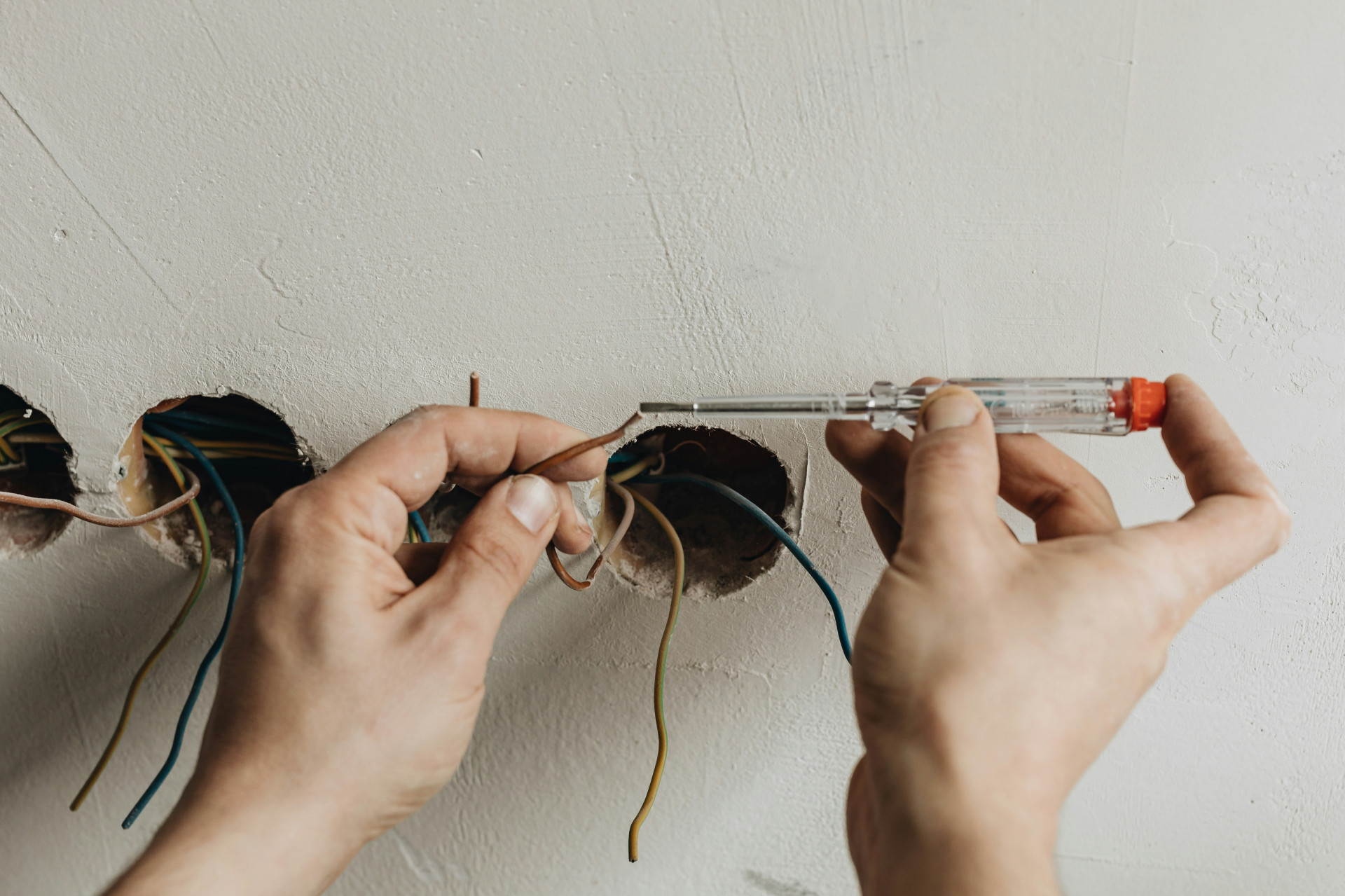

• Use a voltage tester to confirm that no current is present.
• Read the manufacturer’s instructions carefully—details can vary between models.
• If in doubt, stop and call a licensed electrician.

Step 1: Remove the Old Thermostat

Gently remove the front cover of your old thermostat. Most models can be pried off with a small screwdriver. Unscrew the unit from the wall and pull it forward to expose the wiring behind it.

Before disconnecting anything, take a clear photo of the wiring connections. This will make it easier to connect the new thermostat correctly. Then, disconnect the wires one by one.

Step 2: Check and Prepare the Wires

Inspect the wires to ensure they’re in good condition. If the copper looks dark or corroded, trim and strip the ends to expose clean metal. You’ll typically find three types of wires:

• Active (L) – usually brown or red
• Neutral (N) – usually blue or black
• Sensor wires – two thin wires from the floor temperature sensor

If you’re unsure which wire is which, or if the colours don’t match standard Australian wiring, contact an electrician before proceeding.

Step 3: Connect the New Thermostat

On the back of the new thermostat, you’ll see terminals marked L, N, and often a symbol for the floor sensor. Connect the wires as follows:

1. Active (L) to the L terminal
2. Neutral (N) to the N terminal
3. Sensor wires to the sensor terminals

Tighten the screws gently but firmly. Make sure no bare copper is exposed and that the wires are secure.

Læs også:

Install Your Own Electric Floor Thermostat – Step by Step

Electricity

Learn how to replace or install an electric floor thermostat step by step. This guide walks you through the process safely and efficiently, helping you improve comfort and energy savings in your home.

Worn-out switch? How to spot the signs

Electricity

Light switches may seem simple, but wear and tear can turn them into potential hazards. Learn how to identify the signs of a worn-out switch and when it’s time to call a professional for a safe replacement.

Childproof Power Points – How They Work

Electricity

Learn how childproof power points help prevent electric shocks and make your home safer for young children. Discover how they work, what to look for when buying them, and the regulations that apply in Australia.

Make Better Use of Daylight and Reduce Your Power Consumption

Electricity

Discover how to make the most of daylight to lower your energy use and create a more comfortable living space. Learn practical tips for designing with natural light, combining it with artificial lighting, and adjusting your daily habits for a brighter, more sustainable home.

Step 4: Mount the Thermostat on the Wall

Once the wiring is complete, carefully push the thermostat back into the wall box. Align it so it sits straight, then screw it into place. Attach the faceplate or front cover according to the manufacturer’s instructions.

If your model has a touchscreen or digital display, ensure the frame or mounting plate is properly fitted before snapping on the front.

Step 5: Restore Power and Test

Turn the power back on at the switchboard. Switch on the thermostat and check that the display lights up. Adjust the temperature setting and wait a few minutes—your floor should begin to warm up.

If nothing happens, turn the power off again and double-check your connections. Make sure the floor sensor is properly connected, as the thermostat won’t function without it.

Step 6: Set Temperature and Schedule

Modern thermostats often allow you to set both comfort and energy-saving temperatures, as well as daily or weekly schedules. This helps you reduce energy use by automatically lowering the temperature when you’re asleep or away.

A good guideline is:

• Comfort temperature: 24–26 °C floor temperature
• Energy-saving temperature: 18–20 °C

Refer to your thermostat’s manual for programming instructions. Many newer models can also be controlled via smartphone apps, giving you remote access to your heating.

Step 7: Maintenance and Troubleshooting

Electric floor thermostats require very little maintenance. However, if you notice uneven heating or the floor not warming up, check that the sensor is working correctly and that the thermostat settings haven’t been changed accidentally.

Avoid covering the thermostat with furniture or curtains, as this can affect temperature readings. If problems persist, contact a licensed electrician to inspect the system.

A Small Project with Big Comfort

Installing an electric floor thermostat is a manageable DIY project for many Australian homeowners—especially when replacing an existing unit. The result is more accurate temperature control, improved comfort, and potential energy savings.

With a careful approach and respect for electrical safety, you can enjoy a warm, inviting floor and the satisfaction of a job well done.
